| Basic information | |
| Size： | 9.46×2.8×3.03 m |
| Weight： | 20t |
| Machine working weight： | 21.1t |
| Bucket capacity： | 1m³ |
| Boom length： | 5700mm |
| Stick length： | 2500mm |
| Track shoe width： | 600mm |
| Track gauge： | 2200mm |
| Minimum ground clearance： | 450mm |
| Counterweight ground clearance： | 1020mm |
| Rear turning radius： | 2750mm |
| Engine | |
| Engine type： | Cat C7.1 |
| Max output power： | 112kW |

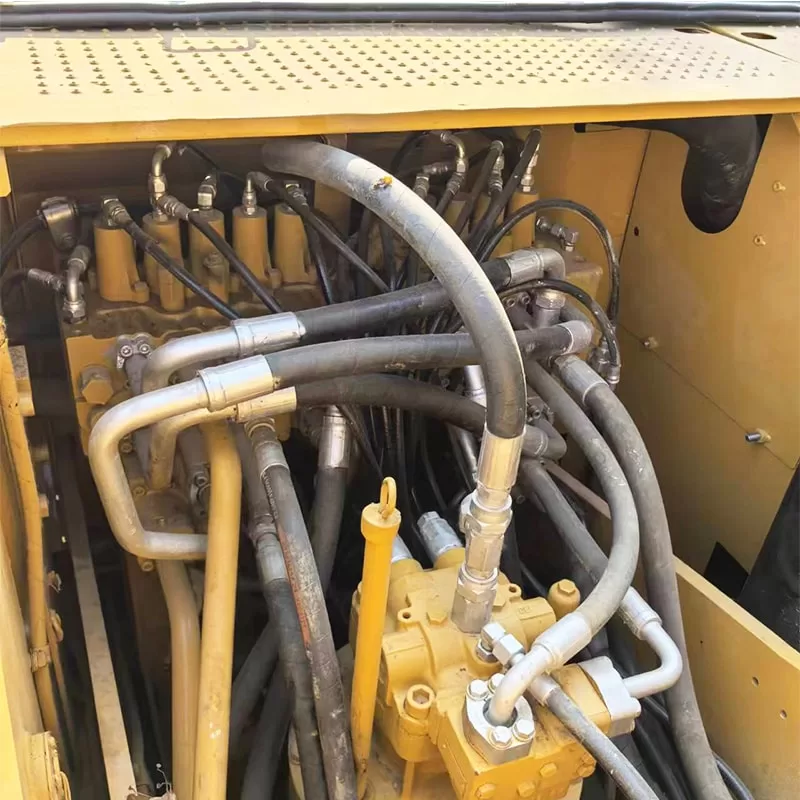

| Hydraulic system | |

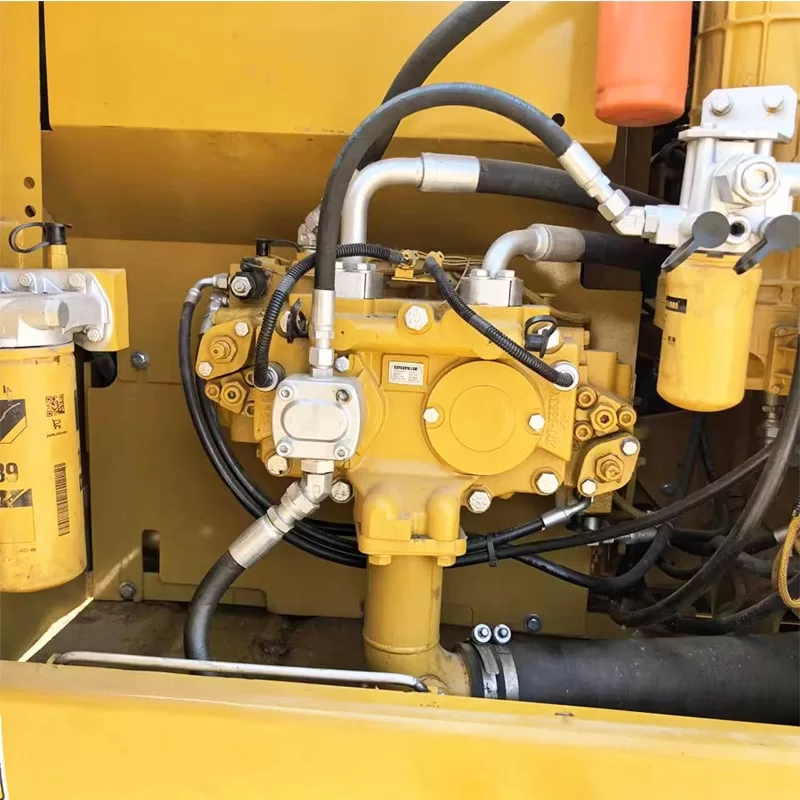

| Main pump maximum flow： | 404L/min |
| Working hydraulic oil circuit： | 34.3 |
| Travel hydraulic circuit： | 35Mpa |
| Rotary hydraulic circuit： | 25Mpa |
| Capacity | |
| Fuel tank： | 410L |
| Hydraulic tank： | 138L |
| Engine oil replacement amount： | 22L |
| Coolant： | 25L |
| Performance parameters | |
| Bucket digging force： | 125kN |
| Stick digging force： | 104kN |
| Maximum traction： | 205kN |
| Scope of work | |
| Maximum digging radius： | 9890mm |
| Maximum digging depth： | 6720mm |
| Maximum digging height： | 9490mm |
| Maximum unloading height： | 6490mm |
| Maximum vertical digging depth： | 5690mm |
